Grundfos

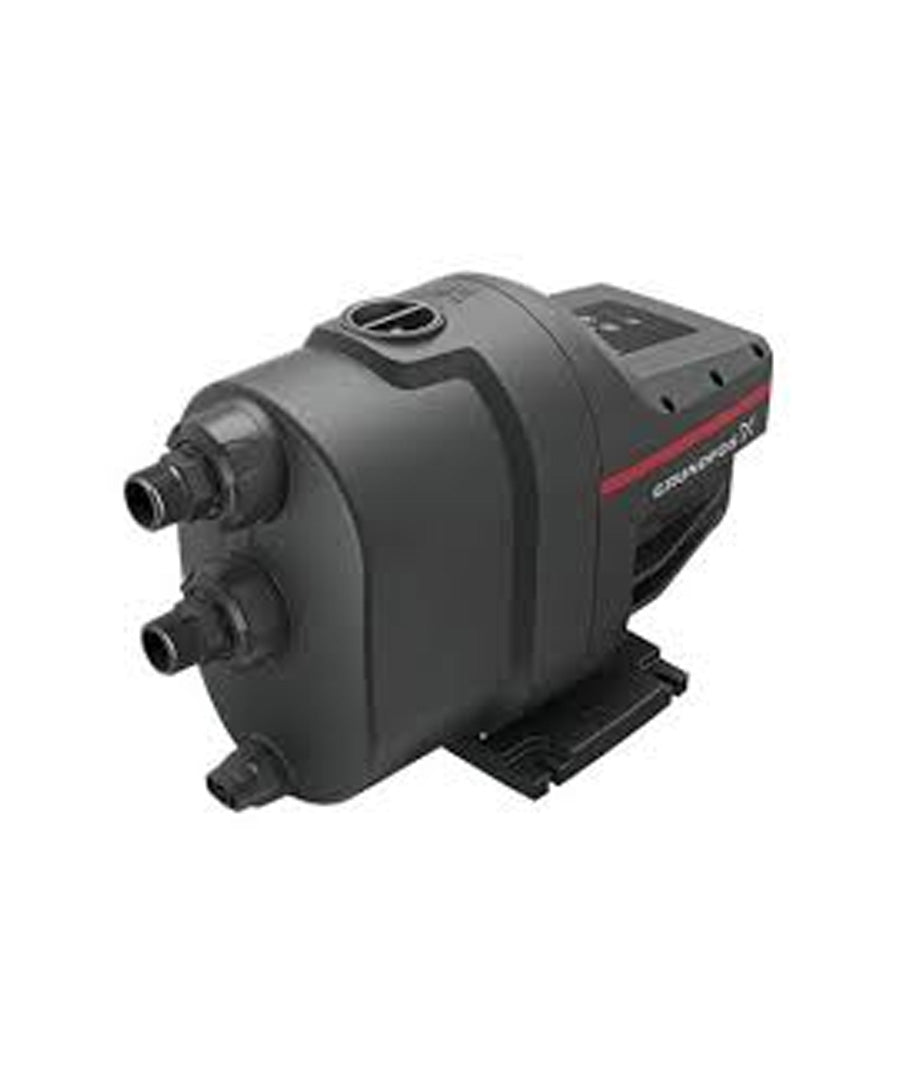

Grundfos Scala 1

SKU: 99530422

$1,057.70
$1,244.36 $1,057.70
Sale Sold out
Tax included. Shipping calculated at checkout.

The GRUNDFOS SCALA1 is a robust all-in-one, self-priming pump with built-in Bluetooth® connectivity, making it simple to install, trouble shoot and customise using the GRUNDFOS GO App. SCALA1 is self-priming, allowing it to be connected to either above ground or below ground (up to 8m) water sources.

*** Note: Delivery timeframe may vary, enquire today.
View full details

Features & Specifications

Features:

• For water sources below pump level - Designed with good suction lift capabilities, the SCALA1 is able to draw water up to 8 metres vertically below the level of the pump
• Quiet operation - Super quiet operation that won’t disturb your family or neighbours
• All-in-one construction - Tough, weather resistant outer casing houses the pump, motor and the controller
• Easy installation – plug & pump - Simply connect the pump inlet and outlet to the pipework, prime the pump, plug into a power outlet and you’re ready to pump
• Simple to operate and monitor - Seamlessly connect to your SCALA1 using the Bluetooth connected Grundfos GO App.

Technical Features:

  • Suction Lift: 8m
  • 230Volt
  • Single Phase
  • 50 Hz
  • System Pressure: Max 8 Bar
  • dB: 55
  • Ambient Temperature: 0°C to +55°C
  • Liquid Temperature: 0°C to +45°C
  • Power Cable: 1.5m with Plug
  • Enclosure Class: IPX4D
  • Auto start/Stop
  • Dry Run Protection
  • Anti-Cycling Protection
  • Alarm Indication LED

Application:

  • Household water supply
  • Pressure boosting from above ground rainwater or holding tanks
  • Pressure boosting from below ground water sources
  • Mains boosting
  • Irrigation

Dimensions:

Length: 466mm
Height: 263mm
Width: 202mm
Weight: 3-45: 12KG / 5-55: 14KG

Warranties

2 Year Back to Base Warranty
